        Product

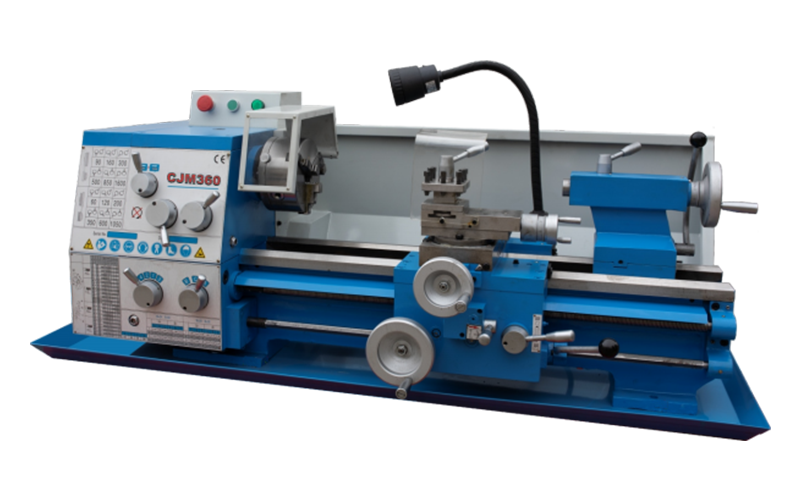

        CJM360
        Product CJM series light lathe products

        CJM360

        Product features

        ?Full gears driven in the headstock.

        ?Feeding box with 12 steps of variable speeds ,covering common threading pitches .

        ?Longitudinal & cross auto feeding adopts inter-lock structure with good safety.

        ?High frequency hardened Two V-type widened guideway with rigidity.

        ?Inclined wedge toolpost carriage; Camlocked tailstock;Industrial lathe operation rod


        • Parameter
        • Machine tool accessories
        • External dimensions
        • Cooperation

        Technical parameters

        Model


        CJM360/600

        CJM360/750

        Max. swing over bed

        360mm

        Max. work-piece length

        600mm

        750mm

        Max. swing over carriage

        230mm

        Main spindle diameter

        38mm

        Main spindle taper

        MT. 5#

        Max. cross travel of carriage

        205mm

        Max. travel longitudinal of toolpost

        100mm

        Metric threads range/ No

        0.2 ~7.0mm/22

        Imperial threads range/ No

        21?2 ~48T. P. I/45

        Module threads range/ No

        0.2 ~ 3. 5M. P/21

        Diametrical threading range/ No

        8 ~ 120D. P/ 31

        Toolpost longitudinal feeding per spindle rotation

        0. 1 ~ 1.4mm/ r

        Toolpost cross feeding per spindle rotation

        0.045 ~0.6mm/ r

        Max. travel of tailstock sleeve

        90mm

        Tailstock sleeve taper

        MT.3#

        Spindle speed steps

        12

        Main Spindle speed scope

        60 ~ 1600 rpm

        Main motor power

        1. 1 kw

        Net weights/Gross weights

        370/420kg

        390/440kg

        Overall dimensions( L*W* H)

        140×70×64cm

        152×70×64cm

        Packing dimensions (L*W* H)

        150×76×77cm

        163×76×77cm


        Stamdard accessories

        Optional accessories

        3 -jaw chuck

        Φ160

        Chip tray

        Machine Base

        Belt

        A type 864

        Steady rest

        Follow rest

        Dead centers

        MT.3#, 5#

        4 -jaw chuck  Φ160/ Φ200

        Flange plateΦ160/ Φ200

        Chuck spanner

        1  piece

        Face Plate  Φ250

        Thread dial indicator

        Allen wrench

        4#,5#,6#

        Special optional change gears( 10)

        Live center

        Stud dead

        12 - 14; 17 - 19

        Coolant

        Work light

        Changing gears

        36T

        Digital readout

        Optional motor 1. 5KW

        MN  gears

        2  piece

        Optional Main spindle diameter Φ40. 5





        Product features

        ?Full gears driven in the headstock.

        ?Feeding box with 12 steps of variable speeds ,covering common threading pitches .

        ?Longitudinal & cross auto feeding adopts inter-lock structure with good safety.

        ?High frequency hardened Two V-type widened guideway with rigidity.

        ?Inclined wedge toolpost carriage; Camlocked tailstock;Industrial lathe operation rod


        Kind Tips:The products will be improved and updated continously. The changes shall not be noticed additionally. Due to the di?erent con?guration requirements , the machines pictures and physical objects may be di?erent , and the physical machines prevail.
